How far off keel centerline, left and right, is the optimal placement for water pickups on the cav plates. How far forward off the the trailing edge also, if that matters.
Printable View
How far off keel centerline, left and right, is the optimal placement for water pickups on the cav plates. How far forward off the the trailing edge also, if that matters.
Call Mikey at Prime Marine. (909) 484-8329 with all the experience he has rigging ski race boats he would be a solid source.Quote:
Originally Posted by WESTERNAERO
I asked a similar question and was told that due to airation by the plates, I should consider moving the pickups under the boat out of the prop blast. I'm working on a true flat though. On your cruiser I would think back more would give you more lateral options to stay wet and out of the prop wash.
Yeah, I want to make sure they are getting clean water. I also wonder about the bottom angle, 15 deg, 12.5 deg and flat. Not sure what the GN Raysons and the like are, 7 deg maybe.
my water pick ups are 7" from center and 1.5" from the trailing edge of the plate with a 20* slash cut on them
cp performance part number Cavitation Plate Style -10 AN Water Pick-Up
410-301101
comes in many sizes
I'm doing -16's and I making them now, so no need for CP's number but thanks. 7.0" off center sounds a little too close to center for some reason. Just from looking at other boats, I was thinking around 12.0" off center. But I am curious if there is some standard to this? Something that figures in the diameter of the prop + the angle of the bottom + distance from the prop, sort of thing.Quote:
Originally Posted by ogshotgun
Julian rigged the Biesemeyers with a single pick up under the boat (at the blast plate). If that comes loose or fails at speed your boat will likely sink.Quote:
Originally Posted by SnoC653
I have 2 #12 pick ups separated by 9.5 inches (centered) 9 inches behind the transom. I still use the blast plate pick up, but mine is set up for the oil cooler and v-drive and I check it for tightness every trip.
http://www.v-drivevideo.net/pictures...King_Mikey.jpg
One of Mikey's rigging jobs.
http://i208.photobucket.com/albums/b...ps58dfdf86.jpg
Damn Jerry, I never noticed how many turnbuckles you have on that thing. Looks bitchin anyhow.
Here is a pic of mine on my Schiada.

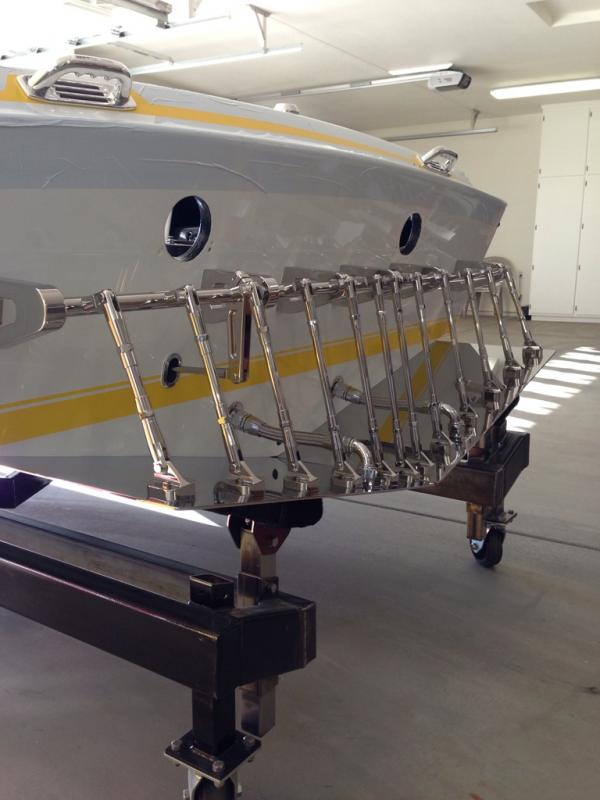

Attachment 37080
Thanks!Quote:
Originally Posted by WESTERNAERO
That look's like a nice garage dolly. Do you have anymore pics of it?Quote:
Originally Posted by SFV2RVR
Yeah, but it's a Schiada...:thumbsdownQuote:
Originally Posted by SFV2RVR
So I guess people just put the pickups where ever they feel they look good. No reasoning behind it, is that correct?
Looking at Marc's, I'd say those are about 10-12 off center. And even with the pads, so about 1.5 - 2.0 from the end of the plate.
That Prime Schiada looks about the same also.
Mine are half way between the inner most turn buckles and the next ones out, and even with the turn buckle pads.Quote:
Originally Posted by WESTERNAERO
So about the same then? So maybe we can say midway between the inner strake and the outer edge of the prop for both sides? I wouldn't think you'd want them directly behind either.Quote:
Originally Posted by gn7
Another thing, the thru hull bulkhead fittings. Above or below the water line? Whats the thinking here? Does having them below make it easier on the pump to prime itself?
Mine are low because where they come thru the transom they go directly into the sea strainer for a clean connection.Quote:
Originally Posted by WESTERNAERO
