Sounds good! I put it off till next week so I'll update then !
Sent from my iPhone using Tapatalk
Printable View
Sounds good! I put it off till next week so I'll update then !
Sent from my iPhone using Tapatalk
Boats alive! Can't figure out how to time this thing lol anyone know in SoCal that can give me a hand with this? Or know a shop that can time before next weekend.. Trying to go out next weekend ! https://vimeo.com/137712254
Thanks in advance !
Sent from my iPhone using Tapatalk
Whats it doing??
There's an outboard place on Holt in Pomona I think. Good friend recommended them. I've used them before with great results. I'll try to remember the name.
Nothing it's sounds good. But I know running with the timing off can ruin a motor. Ya b&j marine, there super cool been getting all my parts threw them.
Sent from my iPhone using Tapatalk
But they said a month till they can do it lol
Sent from my iPhone using Tapatalk
Run it!!
Call Ron Hill or his son, at Signature props (around Orange), they can prolly send you to one of the COR guys that is close to you or walk you through it... They drink 2 cycle oil for breakfast instead of coffee :D If you can talk to Ron, tell him that Bruce/2mm sent you, they should be able to talk you through it over the phone... Did you mark the dizz and parts before you took it apart to get it back CLOSE to the original position, if yes, you are prolly fine to run it until you can get it timed accurately, just not WOT... Run it and look at the plugs, a hard pull and then looking at a plug should tell you if your about to melt down OR NOT... ;) Not very scientific but its a starting point...Quote:
Originally Posted by Rock_Bottom
Do you have a timing light??? This should get you real close... :)
https://youtu.be/ZiXJa3Q6X60
https://youtu.be/M4v_Pvr65d4?list=PL...oMEZmIG-lVg29N

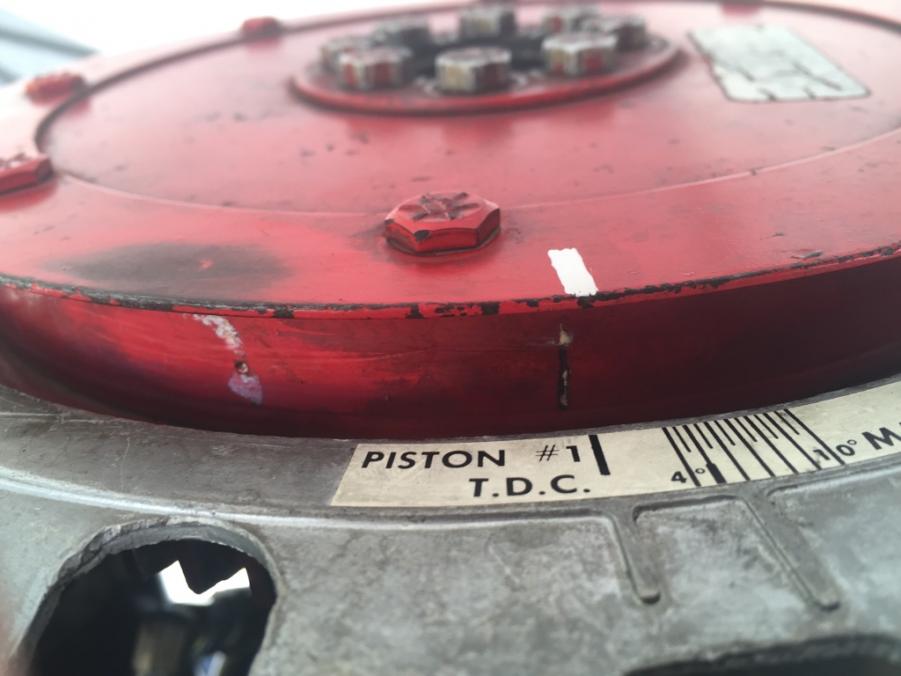

Ok got it lol I was using the wrong marking on flywheel . Yes I have a timing light. 0 @idle and it was at about 25 full advance, nocked it down to about 19-20 full advance as per directed by b & j.. Heading to pudding stone now for maiden voyage wish me luck! Attachment 57073

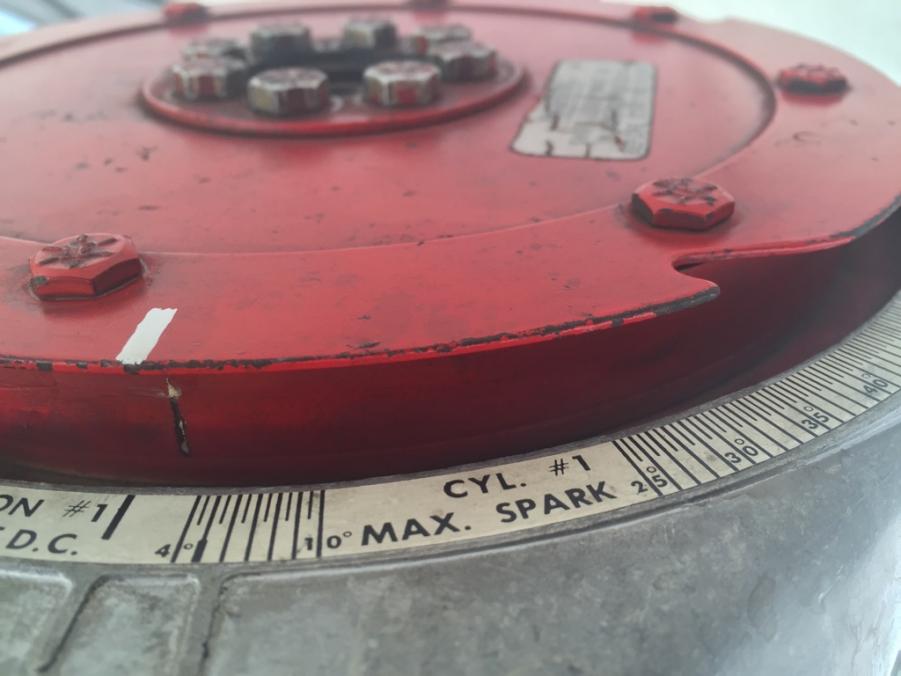

I was using the marking to the left of my white paint mark lol that's why the timing made no sense yesterday lol Attachment 57074
Sent from my iPhone using Tapatalk
I hate boats lol won't rev up in water with a load on it. Only goes to bout 1200 rpm Attachment 57075
Sent from my iPhone using Tapatalk
Oh chit!
Sent from my iPhone using Tapatalk
your timing marks / graduations are stationary... trippy, that makes my head hurt when thinking of static timing procedure...Quote:
Originally Posted by Rock_Bottom
Timing and Sync of Merc Inlines (to 1988)
July 10th, 2006, 07:37 PM
Thanks to clamscanino for this info.
__________________________________________
Manual specs are different for each but this is close enough to get them all REAL close. This assumes nothing is broken or "wrong" with it. This also assumes that the timing pointer is properly adjusted (if adjustable) to accurately read TDC of the #1 piston.
This basic procedure will work for all the 2/3/4/6 cylinder inlines from 1960 to 1988. It's not for the newer 3 and 4 cylinder loopers.
Engine off
Disconnect throttle cable
Pull throttle arm to full throttle and verify carbs open fully. Adjust main throttle stop so that the carbs are JUST hitting thier own little throttle stops. The idea here is that you want the screw stop and NOT the carbs acting as the "final stop" for your throttle lever.
Return the throttle to idle, carbs should be closed. Set all idle screws to 1 3/4 turns out from lightly seated.
Remove all plugs except #1, hook a timing light to #1. Then follow the narritive.
When the throttle is in the idle position the carbs should be fully closed and the ignition retarded. It is the amount of retardation that determines your idle speed and is set later with the idle stop screw.
Timing Event One - throttle pickup.
As the throttle is advanced, the spark timing advances toward TDC and then to before TDC. As the timing is just passing TDC the 1st (minor)throttle pickup should hit and start to open the carbs. Use the timing light. Adjust the tang or trigger screw to make this a reality. All of them are speced different, but if the 1st pickup hits at 3-4 degrees BTDC advance - you win. Use the timing light with a friend cranking it to complete this setting.
Timing Event Two - max advance.
As you continue to advance the throttle the timing will advance while the carbs slowly open a bit more. The next adjustment is max advance, this is the point where the distibutor (or trigger) can advance no more. Set the max-advance stop to 21 degrees for "direct charge" crossflow inlines and 34 degrees for the older plain vanilla crossflows. Use the light, - err to the side of caution.
Right after max advance, further throttle motion should cause the second throttle pickup to hit and open the carbs to full. You already set that -now verify it.
Leave the throttle cable disconnected and go to the water. Leave the boat strapped to the trailer and back it in so it's deep enought to run. Have a friend crank it while you operate the choke and throttle. Warm it up at 1500 rpms's.
When "warm" adjust the idle stop screw for about 800 rpm and then ajust your idle needle(s) in (one at a time) till the motor stumbles. Quickly backing it out 1/2 turn from "stumble" will usually save it from needing a re-start. Do that for all the idle screws. Re-set idle stop for 800.
Now have your friend put it in gear (make SURE you are on the transom NOT in the water) and reset your idle stop for as low as you can get it. 500-600rpm is great if your old reeds will let it idle that low in gear. Now, re-adjust the idle screws, in to stumble, then 1/2 turn out. When you've gone back and forth with that a few times and have it "perfect" - adjust each one out 1/4 turn.
Reset the idle stop so that it's about 700-800 out of gear and 500-600 in gear. Sometimes bad reeds won't let you get that low, you've GOT to get it under 1000 in neutral (worst case) to avoid beating up your lower unit when you shift into gear, even 1000 is "bad" but like I said "worst case".
Now adjust (and hook up)the throttle cable so that with the shifter in neutral, there is light to moderate pressure holding the throttle arm against the idle stop.
Take the boat off the trailer and go out in the water. Try the hole shot. If it falls on it's face try adjusting the idle screws out 1/4 turn at a time (all of them together) till you can get a hole shot. You can kind of do this on the trailer at the ramp, but it's not really safe for you, the boat, or the tow vehicle.
You're done.
-W
LINK TO INFO ABOVE
Dropped the boat off at daves marine in chino. Went by after work and he thinks it's gonna be the coil wire to the distributor. He showed me and it looked in pretty bad shape, He also tore all the carbs back off. And reset the timing . And is gonna sync it. Not looking forward to this bill he's gonna hit me with @95/hr $ [emoji24] probably gonna be more than i bought the whole dang boat for!
Sent from my iPhone using Tapatalk
Ouch! Sorry! Bummer!Quote:
Originally Posted by Rock_Bottom
Sent from my newly renovated Batcave using TapaSTALK
