Prop Shaft

Quote:

---

Originally Posted by gn7

You need to keep the coupler about a 1/16 or so off the v drive output housing, but the safety collar can be as close as you car to make it. It you don't want them to touch, fine. But I a couple thousands with a feeler gauge is all you need. Just don't let it touch the v drive housing or the shaft log seal. It will cook the seal in a heart beat.
Also. McMaster Carr sells SS two bolt safety collars that are only 1/2 wide if that helps.

---

thanks sounds good ill keep you posted think i found enough room to get the CE .625" safety collar in there

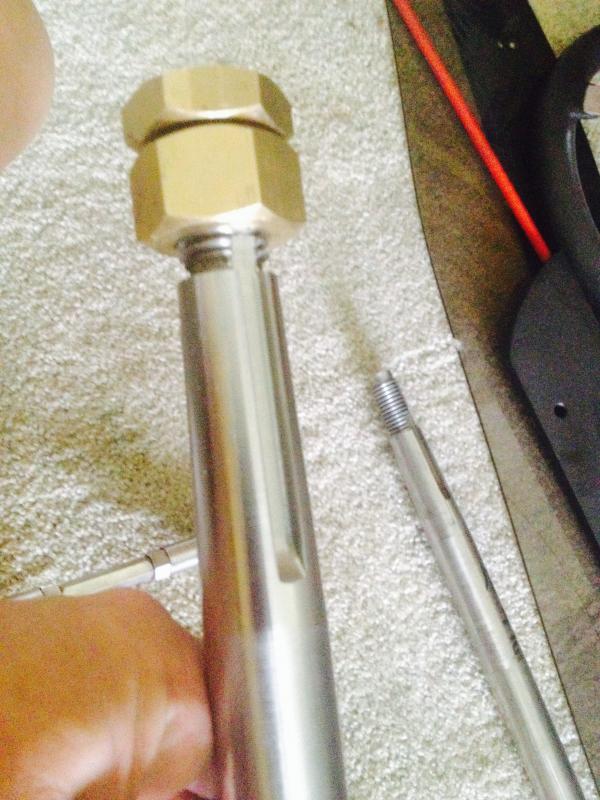

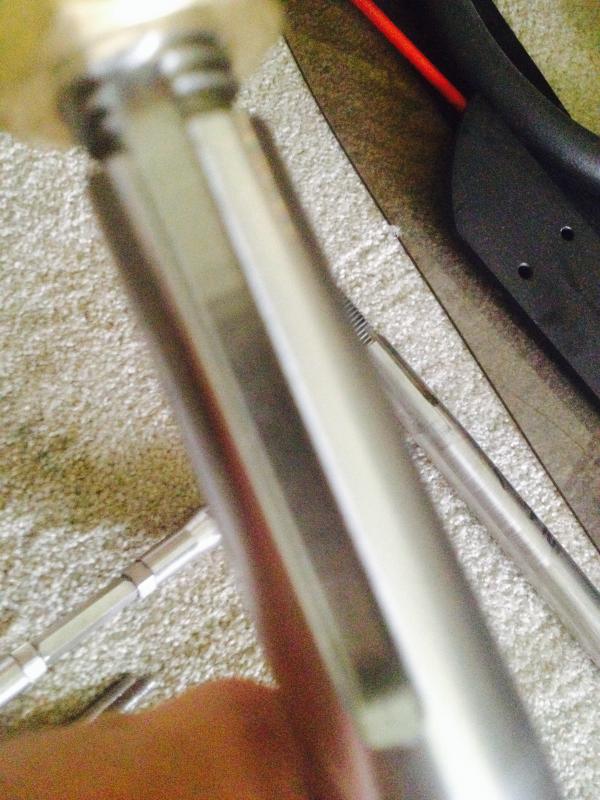

This is how they machined my new Aquamet 22 shaftAttachment 36425Attachment 36426

Quote:

---

Originally Posted by WESTERNAERO

Looks nice. Make sure the key has corner radius' to match the fillets. Looks like that's maybe a .030? Let your phone focus before hitting the button next time.

---

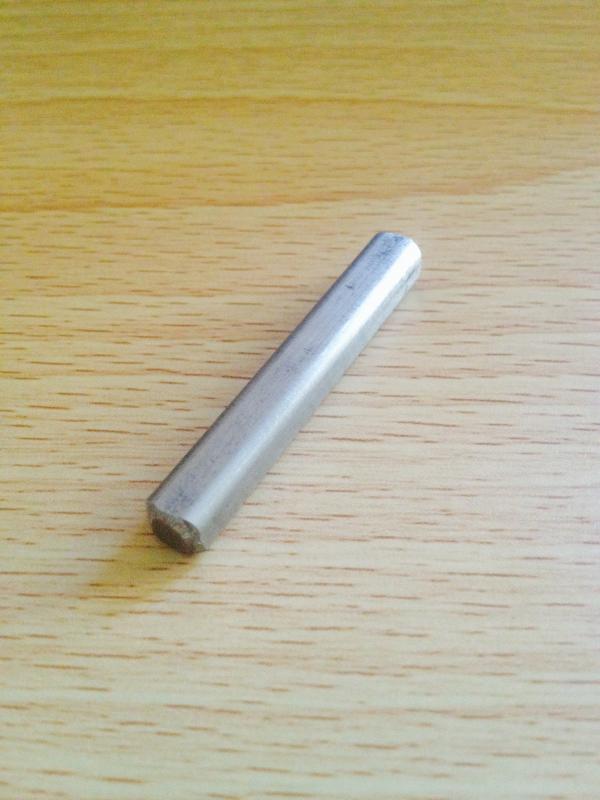

Attachment 36453like this

I have a few of the MCmaster Carr safety collars if you need them. in stainless and chrome too! Im not gonna use them.

Quote:

---

Originally Posted by ptc

I have a few of the MCmaster Carr safety collars if you need them. in stainless and chrome too! Im not gonna use them.

---

i actually do need two for my rudder . i don't like whats there now

Quote:

---

Originally Posted by ogshotgun

Attachment 36453like this

---

Did you get that shaft from Marine Machine? Did they supply you with that piece of key?

If the seat in shaft has a radius approaching the one on that key, those guys have their shit together.

Quote:

---

Originally Posted by ogshotgun

This is how they machined my new Aquamet 22 shaftAttachment 36425Attachment 36426

---

Look's nice! How do they cut a constant depth keyway in a tapered part of the shaft? Do they use a keyway cutter in a vertical mill cutting from the side with the shaft mounted at the appropriate angle?

Quote:

---

Originally Posted by gn7

Did you get that shaft from Marine Machine? Did they supply you with that piece of key?

If the seat in shaft has a radius approaching the one on that key, those guys have their shit together.

---

yes camee from machine machine the radius in the keyway is slightly less than the keyway, aim glad you like it all of your input made the decision thanks

Quote:

---

Originally Posted by WESTERNAERO

Keyway cutter, programmed tool path at the same angle of the taper.

---

thanks for all the help making my decision between you and bob it made life simple i get stuck with too many choices , THANKS AGAIN

GN 369 lost an A 22 shaft and new prop in Sat. race at Parker. I was told it had 6 races on it. I wouldn't run an A 22 prop shaft if was free. K Monel from Italy will be my shaft of choice from now on.
